227 IEC 52（RVV）护套软线

227 IEC 52 (RVV)

轻型聚氯乙烯护套软线

Light-duty PVC Jacketed Flexible Cords

标准 Standard: GB 5023.3--97

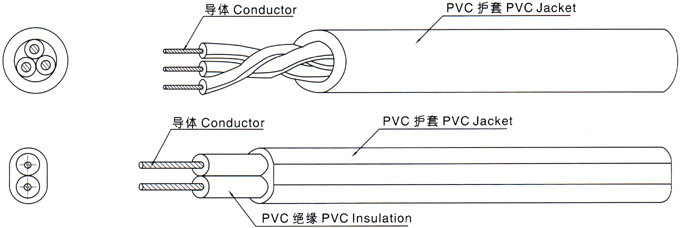

■ 构造 CONSTITUTION：

■ 产品说明

●	使用标准厚度、易剥、易裁
●	具有抗酸碱、耐油、防潮、防霉、环保等特性

PRODUCT DESCRIPTION

●	Rated voltage: 300/300V，Rated temperature:70℃
●	Stranded, tinned or bare copper conductor, 0.5-0.75mm²
●	PVC insulation
●	PVC jacket
●	Passes GB 18380.1 vertical flame test

●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to acid,alkail,oil,mositure and fungi,conform RoSH

■ 应用

适用于一般电子、电器设备电源连线

APPLICATION

For general purpose power supply wiring of electronic and electrical equipment

227 IEC 52(RVV)70℃ 300/300V
导体类型 Conductor Type	导体 Conductor			芯数 Cores	绝缘 Insulation		护套 Jacket			20℃较大异体电阻 Max Resis- tance at 20℃	70℃*小绝缘电阻 Max Insulation Resis- tance at 70℃	耐电压 Dielec- tric Strength AC 5 min	标准长度 Standard Length
	标准截面 Nom.Area	线数/ 线径	直径 Dia		标称厚度 Nom. Thick	标称外径 Nom. Dia.	标称厚度 Nom. Thick.	标称外径 Nom. Dia.	较大外径 Max. Dia
	mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	Ω/Km	MΩ.Km	V	M
绞合导体 Stranded Conductor	0.5	16/0.20 28/0.15	0.92	2	0.5	1.92	0.6	5.1	6.0	39.0	0.012	1500	200
				2				3.2×5.1	3.6×6.0
				2				5.4	6.2
				3
	0.75	24/0.20 42/0.15	2.13	2	0.5	2.13	0.6	5.5	6.4	26.0	0.010	1500	200
				2				3.4×5.5	3.9×6.4
				3				5.8	6.5
