单芯屏蔽电缆
Single Conductor Shielded Cable
|
标准 Standare:UL 758, 1581 CSA C22.2 No.210.2
|
|
|
|
|

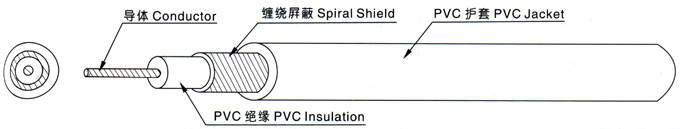

■ 构造 CONSTITUTION：
|
|
|
|
|
|
|
|
■ 产品说明
|
|
|
|
●
|
额定电压：300V， 额定温度：80℃
|
|
|
●
|
导体使用单根或绞线30AWG以上裸铜或镀锡丝
|
|
|
●
|
PVC绝缘
|
|
|
●
|
镀锡或裸软铜线缠绕屏蔽
|
|
|
●
|
PVC护套
|
|
|
●
|
可通过ULVW-1SC 及 CSA FT1垂直耐燃试验
|
|
|
|
|
|
PRODUCT DESCRIPTION
|
|
|
|
●
|
Rated voltage:300V, Rated temperature:80℃
|
|
|
●
|
Tinned or bare,stranded or solid copper conductor,30AWG min.
|
|
|
●
|
PVC insulation
|
|
|
●
|
Tinned or bare copper wire spiral shield
|
|
|
●
|
PVC jacket
|
|
|
●
|
Passes UL VW-1SC & CSA FT1 vertical flame test
|
|
|
|
|
|
|
|
|
|
|
|
|
APPLICATION
|
|
|
|
For use in recording,studios,sound systems and electronic circuits
|
|
|
|
|
|
|
|
UL 1185 80℃ 300V
|
|
导体
类型
Cond- uctor Type
|
导体
Conductor
|
绝缘
Insulation
|
缠绕屏蔽Spiral Shield
|
护套
Jacket
|
较大导体
电阻
Max Resis- tance at 20℃
|
*小
绝缘
电阻
Min Insul- ation Resis- tance at 20℃
|
耐电压
Diele- ctric Stren- gth AC 1 min
|
标准
长度 Stand- ard Length
|
|
线规
Spec
|
线数/
线径
|
直径
Dia.
|
标称
厚度
Nom. Thick
|
标称
外径Nom. Dia.
|
线径Single
Dia
|
外径Nom.
Dia
|
标称
厚度
Nom.
Thick.
|
标称
外径Nom.
Dia.
|
|
AWG
|
No./mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Ω/km
|
MΩ.Km
|
V
|
Ft(M)
|
|
绞合
导体
Stra- nded Cond- uctor
|
30
|
7/0.10
|
0.30
|
0.38
|
1.12
|
0.10
|
1.32
|
0.38
|
2.10
|
354.24
|
15
|
2000
|
2000(610)
|
|
28
|
7/0.127
|
0.38
|
0.38
|
1.20
|
0.10
|
1.40
|
0.38
|
2.20
|
223.75
|
|
26
|
7/0.16
|
0.48
|
0.38
|
1.30
|
0.12
|
1.54
|
0.38
|
2.35
|
139.73
|
|
24
|
11/0.16
|
0.61
|
0.38
|
1.43
|
0.12
|
1.67
|
0.38
|
2.49
|
93.3
|
|
22
|
17/0.16
|
0.76
|
0.38
|
1.58
|
0.12
|
1.82
|
0.38
|
2.65
|
55.0
|
|
20
|
26/0.16
|
0.94
|
0.38
|
1.76
|
0.12
|
2.00
|
0.38
|
2.82
|
34.6
|
|
18
|
41/0.16
|
1.18
|
0.38
|
2.00
|
0.12
|
2.24
|
0.38
|
3.06
|
21.8
|
1000(305)
|
|
16
|
26/0.254
|
1.49
|
0.38
|
2.31
|
0.12
|
2.55
|
0.38
|
3.37
|
13.7
|
|
|
