聚乙烯绝缘同轴电缆
PE Insulated Coaxial Cable
|
标准 Standard: UL 758,1581
|
|
|
|
|

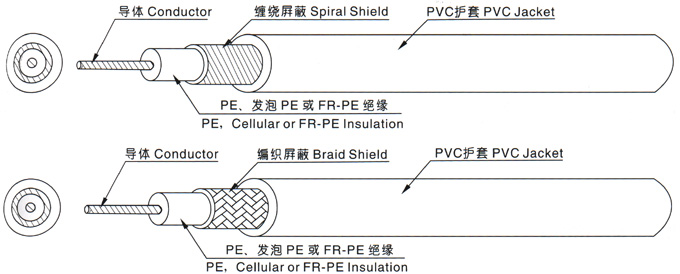

■ 构造 CONSTITUTION：
|
|
|
|
|
|
|
|
■ 产品说明
|
|
|
|
●
|
额定电压：30V， 额定温度：60℃或80℃
|
|
|
●
|
导体使用单根或绞线40AWG以上裸铜或镀锡丝
|
|
|
●
|
PE、发泡PE或耐燃PE绝缘
|
|
|
●
|
镀锡或裸软铜线缠绕或编织屏蔽
|
|
|
●
|
PVC护套
|
|
|
●
|
可通过UL VW-1垂直耐燃试验
|
|
|
|
|
|
PRODUCT DESCRIPTION
|
|
|
|
●
|
Rated voltage: 30V,Rated temperature:60℃or80℃
|
|
|
●
|
Tinned or bare,stranded or solid copper conductor,40AWGmin.
|
|
|
●
|
PE,cellular PE or FR-PE insulation
|
|
|
●
|
Tinned or bare copper wire spiral or braid shield
|
|
|
●
|
PVC jacket
|
|
|
●
|
Passes UL VW-1 vertical flame test
|
|
|
|
|
|
|
|
|
|
■ 应用
|
|
|
|
适用于电视机、收音机、接收器、录音机、录像机等内部连线
|
|
|
|
|
APPLICATION
|
|
|
|
Internal wiring of TV，redio,receiver,VTR,tape recorder,etc
|
|
|
|
|
|
|
|
UL 1354 60℃ or 80℃ 30V
|
|
导体
Conductor
|
绝缘
Insulation
|
屏蔽
Shield
|
护套
Jacket
|
较大导体电阻
Max Resistance at 20℃
|
*小绝缘电阻
Min Insulation Resistance,
at20℃
|
耐电压
Dielectric Strength AC1min
|
标准长度Standard Length
|
|
线规Spec
|
线数/
线径
|
直径
Dia
|
标称
厚度
Nom. Thick.
|
标称
外径
Nom.
Dia.
|
缠 绕Spiral
|
编 织Braid
|
外径Nom.
Dia.
|
标称
厚度Nom.
Thick.
|
标称
外径
Nom.
Dia.
|
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
mm
|
NO./No/mm
|
mm
|
mm
|
mm
|
Ω/km
|
MΩ.Km
|
V
|
Ft(M)
|
|
30
|
7/0.10
|
0.30
|
0.25
|
0.80
|
0.10
|
|
1.00
|
0.30
|
1.60
|
354.24
|
1000
|
500
|
2000(610)
|
|
7/0.10
|
0.30
|
0.90
|
|
16/4/0.10
|
1.30
|
0.30
|
1.90
|
|
28
|
7/0.127
|
0.38
|
0.30
|
0.98
|
0.10
|
|
1.18
|
0.30
|
1.78
|
223.75
|
|
7/0.127
|
0.35
|
1.08
|
|
16/4/0.10
|
1.48
|
0.30
|
2.08
|
|
26
|
7/0.16
|
0.48
|
0.38
|
1.24
|
0.10
|
|
1.44
|
0.35
|
2.14
|
139.73
|
|
7/0.16
|
0.48
|
1.44
|
|
16/4/0.12
|
1.92
|
0.45
|
2.82
|
|
22
|
7/0.203
|
0.61
|
0.45
|
1.51
|
0.10
|
|
1.71
|
0.35
|
2.41
|
93.3
|
1000(305)
|
|
7/0.203
|
0.55
|
1.71
|
|
16/4/0.12
|
2.19
|
0.45
|
3.09
|
|
|
