AVS AVSS Thin-Wall Wire for Automobile

AVS、AVSS

汽车用薄壁型电线

Thin-Wall Wire for Automobile

标准 Standard: JASD D 611--94

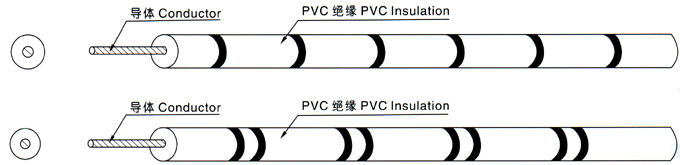

■ 构造 CONSTITUTION：

■ 产品说明
●

额定电压：无规定， 额定温度：105℃

●

导体使用绞线裸铜丝

●

汽车专用PVC绝缘

●

可通过JASO D 611-94耐燃试验

●

使用标准厚度、易剥、易裁

●

具有抗酸碱、耐热、耐寒、耐磨、耐油、环保等特性

PRODUCT DESCRIPTION
●

Rated voltage: not specified，Rated temperature:105℃

●

Stranded, bare copper conductor

●

Sole PVC insulation for automobile

●

Passes JASO D 611-94  flame test

●

Uniform insulation thickness of wire to ensure easy stripping and cutting

●

Resistant to acid, alkali, heat, cold, abrasions and oil，conforming RoHS

■ 应用

适用于车辆高温区电器及仪表线路用连线

APPLICATION

For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

AVS、AVSS

型号 Style

导体

Conductor

绝缘

Insulation

成品外径 Droduct Dia.

20℃最大异体电阻 Max Resistance at 20℃

70℃最小绝缘电阻Max Insulation Resis- tance at 70℃

耐电压

Dielectric Strength AC 30 min

标准长度Standard Length

标称截面

Nom. Area

线数/线径 直径 Dia

标称厚度 Nom. Thick

最小厚度 Min. Thick

标称外径 Nom.

Dia.

最大外径 Max. Dia
mm2 No./mm mm mm mm mm mm Ω/Km Ω.cm V (M)
AVS 0.3 7/0.26 0.8 0.5 0.32 1.8 1.9 50.2 109 1000 500
0.5 7/0.32 1.0 0.5 0.32 2.0 2.1 32.7
0.85 16/0.26 1.2 0.5 0.32 2.2 2.3 22.0
11/0.32 1.2 0.5 0.32 2.2 2.3 20.8
1.25 16/0.32 1.5 0.5 0.32 2.5 2.6 14.3
2.0 26/0.32 1.9 0.5 0.32 2.9 3.1 8.81 300
3.0 41/0.32 2.4 0.6 0.40 3.6 3.8 5.59 200
5.0 65/0.32 3.0 0.7 0.48 4.4 4.6 3.52
0.3f 15/0.18 0.8 0.5 0.32 1.8 1.9 48.9 500
0.5f 20/0.18 1.0 0.5 0.32 2.0 2.1 36.7
0.75f 30/0.18 1.2 0.5 0.32 2.2 2.3 24.4
1.25f 50/0.18 1.5 0.5 0.32 2.5 2.6 14.7
2.0f 37/0.26 1.9 0.5 0.32 2.9 3.1 9.50 300
AVSS 0.3 7/0.26 0.8 0.3 0.24 1.4 1.5 50.2 109 1000 500
0.5 7/0.32 1.0 0.3 0.24 1.6 1.7 32.7
0.85 19/0.24 1.2 0.3 0.24 1.8 1.9 21.7
7/0.40 1.1 0.3 0.24 1.8 1.9 20.8
1.25 19/0.29 1.5 0.3 0.24 2.1 2.2 14.9
2.0 19/0.37 1.9 0.4 0.32 2.7 2.8 9.00 300
0.3f 19/0.16 0.8 0.3 0.24 1.4 1.5 48.8 500
0.5f 19/0.19 1.0 03 0.24 1.6 1.7 34.6
0.75f 19/0.23 1.2 0.3 0.24 1.8 1.9 23.6
1.25f 37/0.21 1.5 0.3 0.24 2.1 2.2 14.6
2.0f 37/0.26 1.8 0.4 0.32 2.6 2.7 9.50 300
