RVVP、RVVP1
|
|
|
Multi-Conductor Shielded Cable
|
Standard: JB 8734.5-1998
|
|
|
|
|

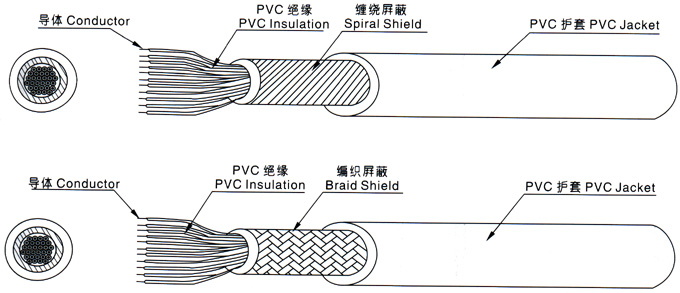

■ CONSTITUTION：
|
|
|
|
|
|
PRODUCT DESCRIPTION
|
|
|
|
●
|
Rated voltage: 00/300V，Rated temperature:70℃
|
|
●
|
Stranded, bare copper conductor,0.08-1.5mm2
|
|
●
|
PVC insulation
|
|
●
|
Tinned or bare copper wire sporal or braid shield
|
|
●
|
PVC jacket, may be round or parallel wire
|
|
●
|
Passes GB 12666.2 vertical flame test
|
|
|
|
APPLICATION
|
|
|
|
For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition
|
|
|
RVVP、RVVP1 70℃ 300/300V
|
|
Style
|
Conductor
|
Cores
|
Insulation
|
Shield
|
Jacket
|
Max Resis- tance at 20℃
|
Max Insul- ation Resis- tance at 70℃
|
Dielec- tric Strength AC 5 min
|
Standard Length
|
|
Nom. Area
|
线数/线径
|
Dia
|
Nom. Thick
|
Nom. Dia.
|
Spiral/ Braid
|
Nom. Thick.
|
Nom. Dia.
|
Max. Dia
|
|
mm2
|
No./mm
|
mm
|
No.
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Ω/Km
|
MΩ.Km
|
V
|
(M)
|
|
RVVP1
|
0.08
|
7/0.12
|
0.37
|
1
|
0.4
|
1.17
|
0.10
|
0.4
|
2.20
|
2.5
|
247.0
|
0.018
|
1500
|
500
|
|
2
|
0.10
|
3.40
|
4.2
|
|
0.12
|
7/0.15
|
0.46
|
1
|
0.4
|
1.26
|
0.10
|
0.4
|
2.30
|
2.6
|
158.0
|
0.016
|
1500
|
|
2
|
0.10
|
0.6
|
4.00
|
4.9
|
300
|
|
3
|
0.10
|
4.10
|
5.1
|
|
4
|
0.15
|
4.60
|
5.8
|
|
5
|
0.15
|
5.00
|
6.2
|
|
0.2
|
12/0.15
|
060
|
1
|
0.4
|
1.40
|
0.10
|
0.4
|
2.40
|
2.8
|
92.3
|
0.016
|
1500
|
500
|
|
2
|
0.10
|
0.6
|
4.20
|
5.3
|
300
|
|
3
|
0.15
|
4.60
|
5.8
|
|
4
|
0.15
|
4.90
|
6.2
|
|
5
|
0.15
|
5.30
|
6.7
|
|
0.3
|
16/0.15
|
0.69
|
1
|
0.5
|
1.69
|
0.10
|
0.4
|
2.70
|
3.1
|
69.2
|
0.014
|
1500
|
500
|
|
2
|
0.15
|
0.6
|
4.90
|
6.2
|
300
|
|
3
|
0.15
|
5.20
|
6.5
|
|
4
|
0.15
|
5.60
|
7.0
|
200
|
|
5
|
0.15
|
6.10
|
7.6
|
|
RVVP
|
0.08
|
7/0.12
|
0.37
|
1
|
0.4
|
1.17
|
16/3/0.10
|
0.4
|
2.40
|
2.9
|
247.0
|
0.018
|
1500
|
500
|
|
2
|
16/4/0.10
|
3.60
|
4.2
|
300
|
|
16/4/0.10
|
2.4×3.6
|
2.9×4.2
|
|
0.12
|
7/0.15
|
0.46
|
1
|
0.4
|
1.26
|
16/3/0.10
|
0.6
|
2.50
|
3.0
|
158.0
|
0.016
|
1500
|
500
|
|
2
|
16/4/0.10
|
4.20
|
4.9
|
300
|
|
16/4/0.10
|
2.9×4.2
|
3.4×4.9
|
|
3
|
16/4/0.10
|
4.40
|
5.1
|
|
4
|
16/4/0.15
|
4.90
|
5.8
|
|
5
|
16/4/0.15
|
5.30
|
6.2
|
|
6-7
|
16/4/0.15
|
5.60
|
6.6
|
200
|
|
10
|
16/5/0.15
|
6.90
|
8.1
|
|
12
|
16/6/0.15
|
7.10
|
8.3
|
|
0.2
|
12/0.15
|
0.60
|
1
|
0.4
|
1.40
|
16/4/0.10
|
0.4
|
2.60
|
3.2
|
92.3
|
0.013
|
1500
|
500
|
|
2
|
16/4/0.10
|
0.6
|
4.40
|
5.3
|
300
|
|
16/4/0.10
|
3.0×4.4
|
3.6×5.3
|
|
3
|
16/4/0.15
|
4.90
|
5.8
|
|
4
|
16/4/0.15
|
5.20
|
6.2
|
|
5
|
16/4/0.15
|
5.60
|
6.7
|
200
|
|
6-7
|
16/4/0.15
|
6.00
|
7.2
|
|
10
|
16/4/0.15
|
0.8
|
7.80
|
9.3
|
|
12
|
16/4/0.15
|
8.10
|
9.6
|
150
|
|
RVVP
|
0.3
|
16/0.15
|
0.69
|
1
|
0.5
|
1.69
|
16/4/0.10
|
0.4
|
2.90
|
3.5
|
69.2
|
0.014
|
1500
|
500
|
|
2
|
16/4/0.15
|
0.6
|
5.20
|
6.2
|
300
|
|
16/4/0.15
|
3.5×5.2
|
4.2×6.2
|
|
3
|
16/4/0.15
|
5.50
|
6.5
|
200
|
|
4
|
16/4/0.15
|
6.00
|
7.0
|
|
5
|
16/4/0.15
|
6.50
|
7.6
|
|
6-7
|
16/4/0.15
|
6.90
|
8.2
|
|
10
|
16/4/0.15
|
0.8
|
9.00
|
10.9
|
100
|
|
12
|
16/4/0.15
|
9.30
|
11.2
|
|
0.4
|
23/0.15
|
0.83
|
1
|
0.5
|
1.83
|
16/4/0.10
|
0.4
|
3.10
|
3.7
|
48.2
|
0.013
|
1500
|
300
|
|
2
|
16/4/0.15
|
0.6
|
5.50
|
6.6
|
200
|
|
16/4/0.15
|
3.7×5.5
|
4.4×6.6
|
|
3
|
16/4/0.15
|
5.80
|
6.9
|
|
4
|
16/4/0.15
|
6.30
|
7.5
|
|
5
|
16/4/0.15
|
6.90
|
8.1
|
|
0.5
|
28/0.15
16/0.20
|
0.92
|
1
|
0.5
|
1.92
|
16/4/0.10
|
0.4
|
3.20
|
3.8
|
39.0
|
0.012
|
1500
|
300
|
|
2
|
16/4/0.15
|
0.6
|
5.70
|
6.8
|
200
|
|
16/4/0.15
|
3.8×5.7
|
45×68
|
|
3
|
16/4/0.15
|
6.00
|
7.1
|
|
0.5
|
42/0.15
24/0.20
|
1.13
|
1
|
0.5
|
2.13
|
16/4/0.10
|
0.4
|
3.40
|
4.1
|
26.0
|
0.010
|
1500
|
300
|
|
2
|
16/4/0.15
|
0.6
|
6.10
|
7.4
|
200
|
|
16/4/0.15
|
4.0×6.1
|
4.8×7.4
|
|
3
|
16/4/0.15
|
6.50
|
7.8
|
|
