Single Conductor Shielded Cable
|
Standare:UL 758, 1581 CSA C22.2 No.210.2
|
|
|
|
|

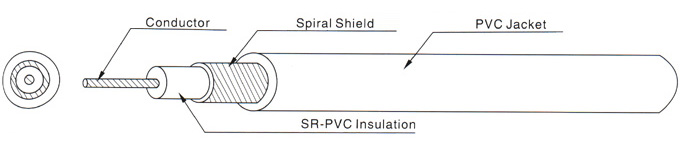

■ CONSTITUTION：
|
|
|
|
|
|
|
|
PRODUCT DESCRIPTION
|
|
|
|
●
|
Rated voltage: not specified, Rated temperature:80℃
|
|
|
●
|
Tinned or bare,stranded or solid copper conductor,30-16AWG
|
|
|
●
|
SR-PVC insulation
|
|
|
●
|
Tinned or bare copper wire spiral shield
|
|
|
●
|
PVC jacket
|
|
|
●
|
Passes UL VW-1SC & CSA FT1 vertical flame test
|
|
|
●
|
Resistant to acid, alkali, oil, moisture and fungi,conforming RoHS
|
|
|
|
|
|
|
|
|
|
APPLICATION
|
|
|
|
For use in internal wiring of recording,studios,sound systems and electronic circuits
|
|
|
|
|
|
|
|
UL 1533 80℃ 无电压值
|
|
Conductor Type
|
Conductor
|
Insulation
|
Spiral Shield
|
Jacket
|
Max Resis- tance at 20℃
|
Min Insul- ation Resis- tance at 20℃
|
Dielectric Strength AC 1 min
|
Standard Length
|
|
Spec
|
|
直径
Dia.
|
标称
厚度
Nom. Thick
|
标称
外径Nom. Dia.
|
线径Single
Dia
|
外径Nom.
Dia
|
标称
厚度
Nom.
Thick.
|
标称外径Nom.
Dia.
|
|
AWG
|
No./mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Ω/km
|
MΩ.Km
|
V
|
Ft(M)
|
|
Stranded Conductor
|
30
|
7/0.10
|
0.30
|
0.23
|
0.80
|
0.10
|
1.00
|
0.30
|
1.66
|
354.24
|
15
|
1500
|
2000(610)
|
|
28
|
7/0.127
|
0.38
|
0.23
|
0.88
|
0.10
|
1.08
|
0.30
|
1.74
|
223.75
|
|
26
|
7/0.16
|
0.48
|
0.23
|
0.98
|
0.10
|
1.18
|
0.30
|
1.84
|
139.73
|
|
24
|
11/0.16
|
0.61
|
0.23
|
1.11
|
0.10
|
1.31
|
0.30
|
2.01
|
93.3
|
|
22
|
17/0.16
|
0.76
|
0.23
|
1.26
|
0.10
|
1.56
|
0.30
|
2.16
|
55.0
|
|
20
|
26/0.16
|
0.94
|
0.23
|
1.64
|
0.10
|
1.84
|
0.30
|
2.54
|
34.6
|
|
18
|
41/0.16
|
1.18
|
0.23
|
1.98
|
0.12
|
2.22
|
0.30
|
2.92
|
21.8
|
|
16
|
26/0.254
|
1.49
|
0.23
|
2.29
|
0.12
|
2.53
|
0.30
|
3.23
|
13.7
|
1000(305)
|
|
|
