227IEC53（RVV）Normal PVC Jacketed Flexible Cords

227 IEC 53 (RVV)

普通聚氯乙烯护套软线

Normal PVC Jacketed Flexible Cords

标准 Standard: GB 5023.3--97

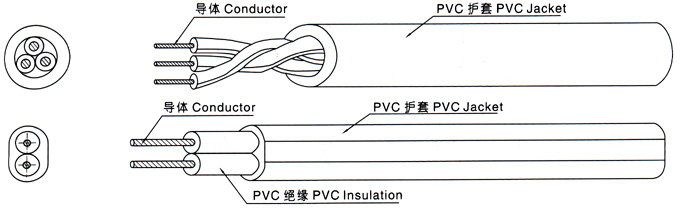

■ 构造 CONSTITUTION：

■ 产品说明
●

额定电压：300/500V， 额定温度：70℃

●

导体使用绞线0.75-2.5mm2裸铜或镀锡丝

●

PVC绝缘

●

PVC护套

●

可通过GB 18380.1垂直耐燃试验

PRODUCT DESCRIPTION
●

Rated voltage: 300/500V，Rated temperature:70℃

●

Stranded, tinned bare copper conductor, 0.75-2.5mm2

●

PVC insulation

●

PVC jacket

●

Passes GB 18380.1vertical flame test
■ 应用

适用于一般电子、电器设备电源连线

APPLICATION

For general purpose power supply wiring of electronic and electrical equipment

227 IEC 53 (RVV) 70℃ 300/500V
导体类型
Conductor Type

导体

Conductor

芯数
Cores

绝缘

Insulation

护套 Jacket

20℃最大异体电阻 Max Resis- tance at 20℃

70℃最小绝缘电阻 Min Insulation Resis- tance at 70℃

耐电压

Dielec- tric Strength
AC 5 min

标准长度
Standard
Length

标准截面

Nom. Area

线数/
线径 		直径Dia 标称
厚度
Nom. Thick

标称外径 Nom.

Dia.

标称厚度 Nom.

Thick.

标称
外径 Nom.

Dia.

最大外径 Max. Dia
No./mm mm No. mm mm mm mm mm Ω/Km MΩ.Km V (M)
绞合导体
Stranded
Conductor

0.75

24/0.20

42/0.15

2 0.6 2.33 0.8 6.3 0.8 26.0 0.011 2000 200
4.0×6.3 5.2×7.6
3 6.7 8.0
4 7.3 8.6
5 0.9 8.1 9.6 100
1.0 32/0.20 2 0.6 2.50 0.8 6.6 8.0 19.5 0.010 2000 200
4.1×6.6 5.3×8.0
3 7.0 8.4
4 0.9 7.9 9.4 150
5 8.6 10.0 100
1.5 48/0.20 2 0.7 3.00 0.8 7.6 9.0 13.3 0.010 2000 200
3 0.9 8.3 9.8 150
4 1.0 9.3 11.0 100
5 1.1 10.4 12.0
25 77/0.20 2 0.8 3.63 1.0 9.3 11.0 7.98 0.009 2000 100
3 9.9 12.0
4 1.1 11.0 13.0
5 1.2 12.3 14.0
