SJT |
|
Power Cord |
Standard: UL 62, 1581 CSA C22.2 No.49 |
|
|

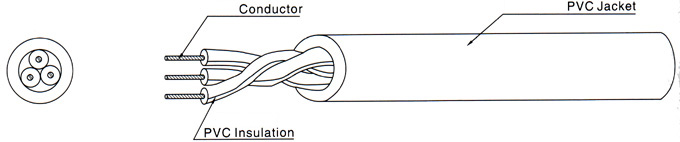

| ■ CONSTITUTION： |
|
 |
|
| PRODUCT DESCRIPTION |
|
| ● |
Rated voltage: 300V，Rated temperature:60℃ |
|
| ● |
Bare, stranded or solid copper conductor |
|
| ● |
Color-coded PVC insulation |
|
| ● |
PVC jacket |
|
● |
Passes UL VW-1 & CSA FT1 vertical flame test |
|
|
|
|
|
|
|
| APPLICATION |
|
General purpose power supply cord |
|
|
|
|
SVT、SJT60℃ 300V |
Style |
Conductor |
Cores |
Insulation |
Jacket |
Resis- tance at 20℃ |
Insulation
Resis- tance at 20℃ |
Dielec- tric
Strength AC 1 min |
Standard
Length |
Spec |
|
Dia |
Nom.
Thick. |
Nom.
Dia. |
Nom.
Thick. |
标称外径 Nom.
Dia. |
| AWG |
No./mm |
mm |
No. |
mm |
mm |
mm |
mm |
Ω/Km |
MΩ.Km |
V |
M |
|
| SJT |
18 |
41/0.16 |
1.18 |
3 |
0.79 |
2.76 |
0.79 |
7.90 |
21.8 |
15 |
1500 |
656(200) |
|
